Suspended Ceiling Grid T24 MT38h CT28h Jay Ends
24mm Face Ceiling Grid, #T24.Jay.3828 (H/D, Seismic)
Main Tee and Cross Tees are a double web design, roll formed from HDGS with prepainted galvanized steel cap.
Cross Tee Interlocking design: "JAY" stab, the stronger of two tongues interlocking design, is the unique design applied on major robust Tee systems including T40, T24 & T15 ceiling grid.
|
|

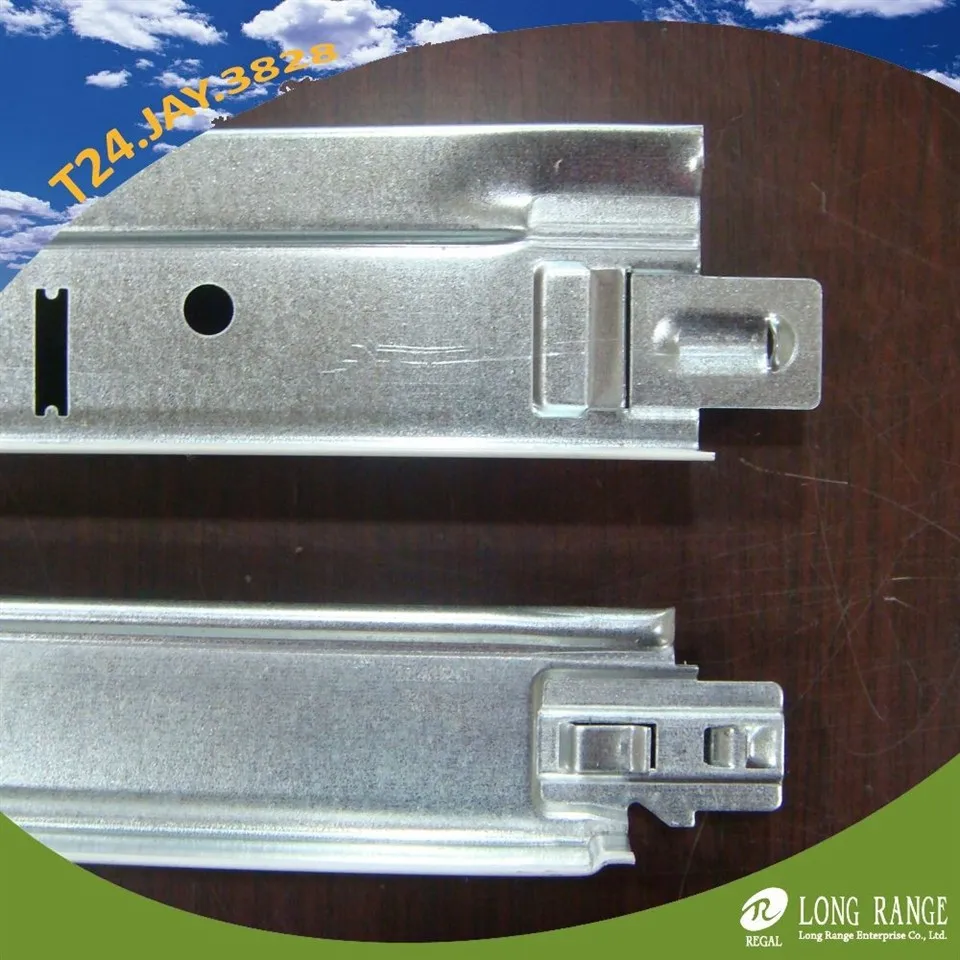

T24 "Jay" Cross Tee Ends, 28mm (h) "Jay" clip with two tongues on both C.T. ends Overlay-end on both C.T. ends |
|
|
T24.Jay.3828 M.T. & C.T. – white cap black cap (on request) |
Grid Type: 24mm Face Grid "Jay" Clip # T24.Jay.3828
|
Width x Height |
Length |
Thickness |
Packaging |
ASTM TEST |
|
|
Main Tee |
24 (w) x 38 (h) |
3.6m, 12' |
0.35 |
25 |
48.6 kg/m* |
|
Cross Tee |
24 (w) x 28 (h) |
1.2m, 4' |
0.35 |
50 |
≧ 80, |
|
Short C.T. |
24 (w) x 28 (h) |
0.6m, 2' |
0.35 |
75 |
≧ 80, |
*hanger wire span on M.T. 900mm
Q: Why should we buy from you not from other suppliers?
A: We have strong experience in OEM & ODM for over 30 years. Our team works can support your idea to come true.
Q: What can you produce?
A: Acoustic ceilings and walls including suspended ceiling grid, sound absorptive perforated gypsum board and micro perforation alum. ceiling tile. It can provide you better quality life with acoustics.
Q: What payment methods does your company accept?
A: Generally speaking, T/T and L/C are the common ones.
